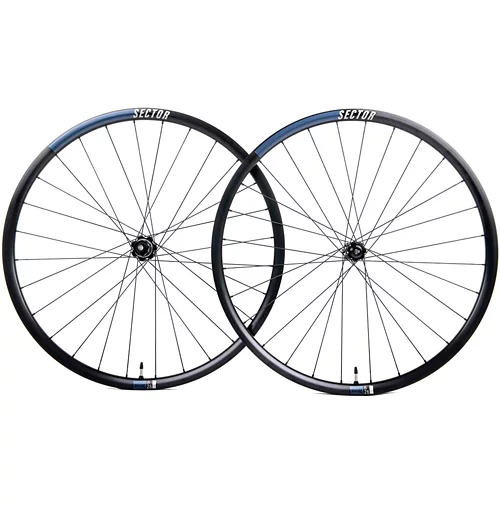

Sector R26 Road Wheelset

Sector R26 Road Wheelset

This road bike wheelset features a robust aluminium construction, which makes it ideal at withstanding all the abuse that’s associated with unpredictable riding conditions. Designed to transform the feel of your bike, this wheelset includes a CNC hub, Pillar Wing Spokes and mid-depth aerodynamic rims, which stand up to the brutality of all riding conditions, while increasing the feel and performance of your bike.

It Starts in the Middle

The responsive feel of this Kinesis wheelset begins at the hub. The R26 features our lightweight CNC hub that maximises stiffness and torque transfer, with angled flanges that follow the path of the spoke, ensuring stress is kept minimal at this critical junction. Inside, we’ve used Revo Cream bearings for miles and miles of smooth-spinning performance.

Wing Power

The R26 road bike wheelset is built with the Pillar Wing Spoke. Unlike regular flat bladed spokes, the Wing Spoke features an ovalized profile inspired by the nose cone of a missile. This addresses several issues that are present with flat bladed spokes.

Firstly, flat-bladed spokes are optimized for a fully laminar airflow coming directly from the front. In the real world, airflow is turbulent and from many directions. The Pillar Wing profile is aerodynamic through different yaw angles.

The second advantage of the Wing spoke lies in the bigger cross-section. The thin nature of flat bladed spokes means that sideways deflection is high. Furthermore, they fail to adequately deal with braking forces generated from the hub, such as the case with disc brake bikes. Thanks to the Pillar Wing Spoke the R26 road wheelset is stiff when sprinting and cornering, and extremely responsive under braking and acceleration.

The Rim is All Round

Those that have been unfortunate enough to ride a deep section aluminium rim know all too well that they are heavy, stiff, and jarring. Any aerodynamic advantage that such a rim offers is offset by the lack of vibration damping, which ironically fatigues you faster and slows you down.

By contrast, the R26 wheelset features a tubeless-ready rim that is 26mm deep, occupying the sweet spot between aerodynamics, ride quality and weight. The large 19.5mm internal width works great with everything from 23mm to 36mm tyres, but especially well with tyres in the 28 to 32mm range, which is quickly becoming the de facto choice for anyone not riding on the track.

Features:

• Rim Material: 6061-T10 Aluminium
• Use: Road
• Spokes: Pillar Wing Aero / Straight Pull
• Hub Rotor Fitment: Centrelock
• Freehub: 11 Speed, 3 Pawl, Shimano HG. (Campagnolo and XD available separately)
• Holes: 28h front and rear
• Rim Width: (Internal) 19.5mm; (External) 23mm
• Rim Depth: 26mm
• Tubeless Ready: Pre-taped with valves supplied
• Weight: 1700g
