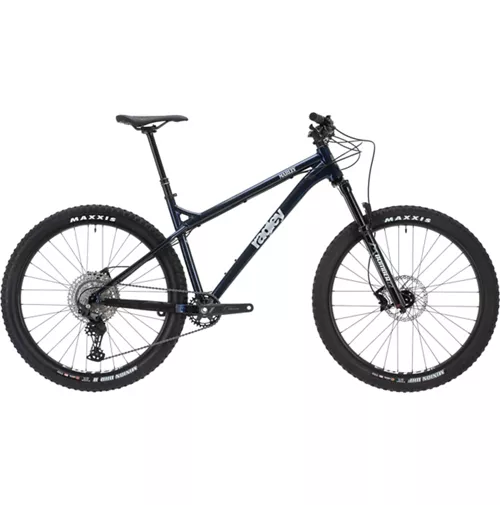

Ragley Marley 1.0 Hardtail Bike – Dark Blue

Ragley Marley 1.0 Hardtail Bike

The Marley 1.0 Hardtail Bike is the ideal ride for newcomers, veterans, weekend trail riders and daily off-road enthusiasts. Ragley has armed this durable, lightweight and playful hardtail trail bike with Marzocchi Bomber Z2 suspension forks with 130mm travel and the responsive but stable RAIL damper system, giving you ample traction and trail-smoothing performance for whatever the mountain throws your way.

Giving you fast gear shifting and powerful all-weather braking performance, the Marley 1.0 is equipped with a wide-ranging 1×11-Speed Shimano Deore groupset with an 11-46-Tooth cassette and powerful Shimano Deore M6100 hydraulic disc brakes. It also rolls upon rapid-spinning Nukeproof Neutron rims and WTB ST i30 Tubeless Ready rims wrapped in high-grip Maxxis Minion MaxxTerra EXO tyres.

The Marley has become a classic: light, punchy and versatile. It might be your first bike to explore off-road, or the agile plaything of a seasoned rider. Using 6061 alloy tubing, the Marley balances a stiff frame with enough compliance for the longest of days in the saddle.

The Marley 1.0 takes all that’s great about the 2.0 but supercharges the spec: The addition of the group test winning Brand-X Ascend dropper. An upgraded 11-speed Deore groupset and SRAM DB8 hydraulic disc brakes. Keeping things lively at the business end; a Marzocchi Z2 Rail provides additional stiffness with 130mm of exceptional damping.

Everything you could want from an all-round hardtail; get wild straight out of the box.

Features

• Frame: Ragley Marley Alloy Frame, 148mm Boost
• Fork: Marzocchi Bomber Z2, 130mm Travel, RAIL, Gloss Black, Kabolt:15×110, 1.5 Tapered steerer, 44mm offset
• Headset: Nukeproof Neutron ZS44/28.6 | ZS44/40 Headset with Ragley Top Cap
• Handlebar: Ragley Alloy, Black, 25mm Rise, 31.8mm Clamp (Width – S780mm, M780mm, L800mm, XL800mm)
• Stem: Ragley 31.8mm clamp, 50mm length, +3° rise
• Grips: Ragley A20 Compound
• Front Wheel: Nukeproof Neutron 15mm Boost Front Hub, WTB ST i30 TCS 2.0 27.5″ 32h rim
• Rear Wheel: Nukeproof Neutron 148mm x 12mm Rear Hub, 36 points of engagement, HG Freehub, Sealed bearings, WTB ST i30 TCS 2.0 27.5″ 32h rim
• Thru Axle: Length: 175mm, Pitch: M12*1.5, Thread length: 18mm
• Front Tyre: Maxxis 27.5×2.60 Minion DHF Foldable 120TPI 3C MaxxTerra/EXO+/TR
• Rear Tyre: Maxxis 27.5×2.60 Minion DHR II Foldable 120TPI 3C MaxxTerra/EXO+/TR
• Rim Tape and Valves: 32mm Tubeless Tape and Tubeless tape supplied
• Chain: KMC 11-Speed X11-EPT
• Crankset: Race Face Ride, 170MM, 32T
• Bottom Bracket: Nukeproof 73mm BSA
• Front Brake: SRAM DB8, 180mm Rotor
• Rear Brake: SRAM DB8, 180mm Rotor
• Rear Derailleur: Shimano Deore RD-M5100 SGS 11-Speed, SHADOW PLUS DESIGN
• Rear Shifter: Shimano Deore SL-M5100, 11-Speed RAPIDFIRE, Direct attach to brake using I-Spec EV
• Drivetrain Cables: Shimano
• Cassette: Shimano Deore M5100 11-51t or DTS GMX 11-50t
• Saddle: Ragley Tracker Saddle
• Seat Post: Brand-X Ascend Internal Routed 31.6mm; SM – 125mm Drop; MD – 150mm Drop; LG/XL – 170mm Drop
• Seat Clamp: 34.9mm Alloy
• Also included: Ragley Chain stay protector
• 5 Year Warranty and lifetime crash replacement
• ISO 4210 Certified

Easy Assembly

When you order a bike, one of our trained mechanics will carefully prepare and pack your bike for shipping. Upon delivery, the assembly is simple and all necessary tools and plastic pedals are conveniently included in the box.

Depending on the delivery service and destination, bikes will either be delivered in a large or a small box. Below is a guide as to how your bike will arrive:

• All bikes for delivery within the UK and Republic of Ireland will be delivered in a large box, except for balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
• All bikes for delivery within the EU on a standard service will be delivered in a large box. If an express delivery option is chosen, your bike will be packed into a small box. Again, the exception is balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
• All bikes for worldwide delivery outside the EU will be delivered in small boxes.

This video demonstrates assembly from a SMALL BOX.

This video demonstrates assembly from a LARGE BOX.

Please note that due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.
