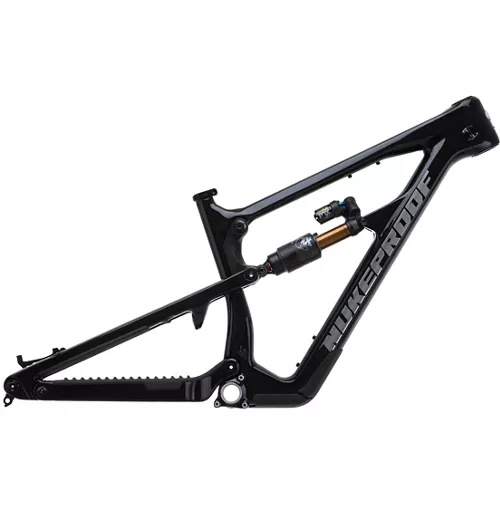

Nukeproof Mega 275 Carbon Frame – Black

Nukeproof Mega 275 Carbon Frame – Black

Featuring an ultra-strong T700/800 monocoque carbon fibre construction, this race-ready full-suspension mountain bike (MTB) frame delivers increased stiffness and strength without any weight penalty. Lightweight and responsive, Nukeproof has also equipped it with updated geometry for smooth handling and internally piped cable routing for a clean, sleek appearance. Engineered for the most demanding of racing conditions, it also comes kitted out with a Factory Series Fox Float X2 rear shock for increased traction, tuneability and smoothness. Coming complete with 148x12mm Boost rear hub spacing and a range of updated features, this carbon frame is an ideal choice of upgrade for completing your enduro bike build.

For over 12 years, Nukeproof’s best-selling model; the Mega has been racking up awards on Enduro stages and in the press around the world. With four Enduro World Series titles to its name, the Mega has become an icon that is synonymous with racing.

Since 2009 the Nukeproof Mega has been on a constant development to meet the demands of Nukeproof’s riders and customers alike. As a result, the Mega Carbon V4 frame is available for 27.5”, 29” or new Mixed (Front 29”/Rear 27.5” wheel sizes) wheel set ups, with each frame design tailored around each wheel size.

Carbon Fibre Full-Suspension Enduro MTB Frame

To optimise the weight, strength and stiffness, the Mega Carbon frame features a T700/800 UD woven carbon fibre frameset (Front and rear Triangle). The carbon swingarms helps reduce the unsprung weight on the rear of the bike, improving suspension performance. All forged parts are made from 6061-T6 aluminium.

After winning four Enduro World Series Titles in three years the V4 design is an evolution of Nukeproof’s ultimate enduro bike. At the heart of the frame is the brand’s revised suspension Kinematic, designed to be more subtle off the top, whilst remaining progressive and predictable. Anti-Squat is used to create an effective pedalling bike that can be thrashed through technical terrain. The useable SAG range is also widened to allow riders to tune the suspension to the trails. Other key features include:

· All new UD Carbon chassis

· Improved suspension kinematics

· Tube-In-Tube design for easy cable installation

· All new geometry

· Optimised sizing/fit – Small to XXL

· SRAM UDH

· Room for a 750ml water bottle inside the main front triangle

The updated Mega frame geometry features dynamic saddle offset which is designed to optimise seated rider weight distribution on each frame size. This is achieved through seat angles which are bespoke to each frame size. In addition, the actual seat tube is designed to be shorter overall with a bigger maximum insert depth so as to allow a longer dropper post if required.

Features:

• Material: Nukeproof Mega V4 275 Carbon, 165mm Travel, ultra-strong T700/800 monocoque UD Carbon Fibre frame
• Use: Mountain Bike (MTB) frame
• Shock: Fox Float X2, Factory Series, Kashima, EVOL, 2 Position lever, Custom CL, RM, Rezi CM tune, 230x65mm, Bearing End, 2x 0.3 spacer fitted. (SHORT ID: D7JJ)
• Fork Travel: 170mm
• Axle to Crown: 562mm
• Fork Offset: 37mm
• Rear Travel: 165mm
• Wheels Size: 27.5″
• Max Tyre Size: 2.6″
• Recommended Shock Sag (Measured seated): 30%
• Shock Size: 230×62.5mm
• Shock Hardware F: 25x8mm
• Shock Hardware R: 30x8mm
• Sizing Options: S/M/L/XL/XXL
• Headtube: 44-56mm Tapered Semi-Integrated
• Headset: Nukeproof, 44-56 IITS, ZS44-28.6 – T2 / ZS56/40 – B8
• Bearings Required: 4x F6802 LLU MAX, 4x 6902 LLU MAX, 2x F6902 LLU MAX-EA
• Seatpost: 31.6mm (Internal Routing for Dropper Seatpost)
• Seat Clamp: 36.4mm
• Bottom Bracket: Threaded 73mm BSA
• Rear Hub: Boost 148x12mm
• Rear Axle: SRAM UDH Maxle Stealth M12x1.0 180mm (Thread Length 13mm)
• Chain Guide: ISCG05
• Brake Mount: 180mm Direct Post
• Protection: 3D Contoured Rubber Frame Protection for DT/SS/CS
• Cable Routing: Internally piped cable routing
• ISCG05 mount
• Enduro bearings
• Weight: 3.88Kgs/8.55lbs (Tubeless)
