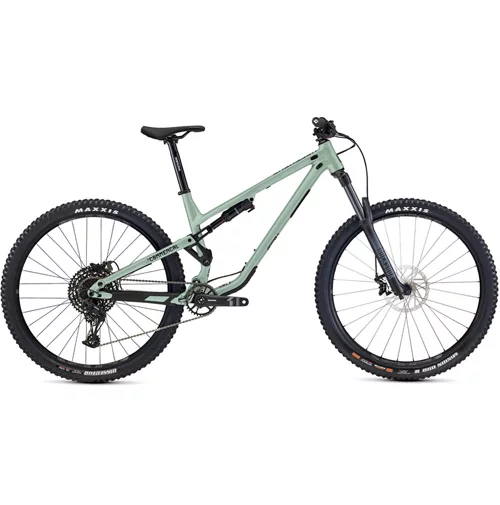

Commencal Meta TR Origin Suspension Bike 2023

Commencal Meta TR Origin Suspension Bike

The Meta TR Origin from Commencal is a 140mm-travel trail bike that’s ideal for cross-country riding, fast and technical trail riding and long-distance off-road adventures. It features modern enduro-inspired geometry, RockShox suspension and a SRAM SX Eagle 12-Speed groupset with a 11-50T cassette and SRAM Guide T hydraulic disc brakes. Plus, it rolls upon tubeless ready E13 LG1 EN Base rims wrapped in Maxxis Wide Trail tyres.

Full Suspension Trail Mountain Bike

How do you make a high-performance-uphill bike whilst keeping the Commencal DNA when it’s time to go down the hill? This is the challenge that Commencal set its engineers and the results are truly amazing. In terms of suspension, legendary brand RockShox is in control. A strong and precise RockShox 35 Silver fork, as well as a Deluxe Select shock which offers easy adjustment, ensure comfort and grip both up and down. Plus, thanks to 29-inch wheels, kinematics that make the bike even more dynamic and a straighter seat tube angle with reduced offset, the Meta TR Origin is formidable through any pedalling sections. As soon as you get to the top and you’ve hurried to take that inevitable selfie, you’ll be ready to take on the most daunting trails.

Full Suspension Frame with Enduro Bearings

Aesthetically, the frame has evolved in depth. It’s very simple, everything has been updated and the sharper lines highlight improved performance. The stiffness of the frame is always the subject of much attention. The use of double-row Enduro Bearings allows a more homogeneous deformation of the frame without the loss of stiffness via the bearings.

Ideal for Trail, Enduro and All Mountain Riding

When Commencal developed the Meta TR Origin, their intentions were clear – to make a bike that performs very well uphill but that also retains the Commencal downhill performance.

They got results thanks to a few key points:

• Large 29-inch wheels
• Reworked and modifiable kinematics making the bike more dynamic
• A straighter seat angle (and reduced offset)

Efficient, Agile and Playful Full Suspension Bike

The result is a particularly harmonious bike, a formidable pedaller and ideal companion for long active rides. The TR is seamlessly capable of transcending from uphill to downhill and soaking up all types of lumps and bumps in between. Thanks to 140mm of rear travel and the 150mm or 160mm fork, it tackles most obstacles without hesitation. Plus, the TR shows liveness and is playful when it comes to the terrain and pumping for speed etc.

Adjustable Flip Chip Suspension

In addition to all this in-depth work, like on the Commencal Meta Power TR, Meta SX and Clash bikes, it now offers a Flip Chip on the shock absorber extension to adjust the geometry more acutely, and therefore fit your personal style! This system means you can influence the height of the bottom bracket as well as the steerer and saddle angles within seconds. Depending on what you want, effectively, you can choose between a lively bike perfect for big pedalling missions, or more progressive bike ideal for days in bike park or on more committed lines.

This Meta TR has all the right parts to ensure reliability and simplicity:

• The SRAM SX 12-speed drivetrain features a super-efficient and large 11-50t gearset
• The SRAM Guide T 4-piston brakes are fitted with 200mm discs for powerful braking
• The RockShox 35 Silver fork is easy to adjust, rigid and precise
• The RockShox Deluxe Select shock is also easy to adjust and offers comfort and grip both uphill and downhill

Features:

• Frame: Mega TR 140mm travel, 29″, Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
• Fork: RockShox 35 Silver R, 150mm travel, 29″, Coil, rebound, Boost (15 x 110 mm), 44 mm offset
• Rear Shock: RockShox Deluxe Select 210 x 55 mm, rebound, 2 tokens
• Headset: Acros ZS44/ZS56 Alloy cups, sealed bearings
• Stem: Ride Alpha Freeride 40, 40 mm extension, 31,8 mm
• Handlebar: Ride Alpha R20, 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S – 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L – 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
• Grips: Ride Alpha DH, Ultra-soft compound, single clamp, black
• Shifters: SRAM SX Eagle, 12-Speed
• Brakes: SRAM Guide T, 4 Pistons, matchmaker compatible, Rotor: SRAM G2 CleanSweep 200 mm, 6-bolt
• Crankset: SRAM X1 1000 Eagle, DUB, Boost, Chainring: SRAM X1 1000 Eagle, 32t, Narrow-Wide
• Bottom Bracket: SRAM DUB Press Fit
• Chain: SRAM NX Eagle, 12-Speed
• Cassette: SRAM PG-1210, 11-50T, 12-Speed
• Rear Derailleur: SRAM SX Eagle, 12-Speed
• Rims: E13 LG1 EN Base 29″, 32h, 30 mm inner width
• Front Hub: Formula DC-711 32h, sealed bearings
• Rear Hub: Formula DCL-348A, 32h, sealed bearings
• Spokes: Sapim Race, J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black
• Tyres: Rear: Maxxis Minion DHR II, 29″ x 2.40″, WT, EXO, dual compound, Tubeless Ready; Front: Maxxis Dissector, 29″ x 2.40″, WT, EXO, dual compound, Tubeless Ready
• Saddle: SDG Bel Air V3, Steel Rails
• Seat Post: Ride Alpha 34,9 mm, 400 mm on S/M, 450 mm on L/X
• Accessories: Down tube protector, chainstay protector, seat stay protector
• Weight: 15.8 kg

Easy Assembly

When you order a bike, one of our trained mechanics will carefully prepare and pack your bike for shipping. Upon delivery, the assembly is simple and all necessary tools and plastic pedals are conveniently included in the box.

Depending on the delivery service and destination, bikes will either be delivered in a large or a small box. Below is a guide as to how your bike will arrive:

• All bikes for delivery within the UK and Republic of Ireland will be delivered in a large box, except for balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
• All bikes for delivery within the EU on a standard service will be delivered in a large box. If an express delivery option is chosen, your bike will be packed into a small box. Again, the exception is balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
• All bikes for worldwide delivery outside the EU will be delivered in small boxes.

This video demonstrates assembly from a SMALL BOX.

This video demonstrates assembly from a LARGE BOX.

Please note that due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.
