Commencal Meta SX Essential Suspension Bike 2023

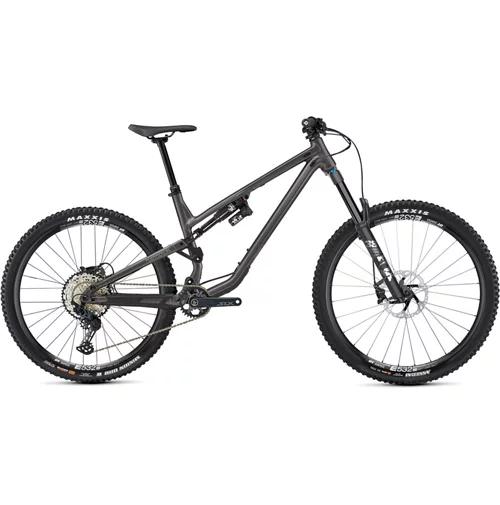

Commencal Meta SX Essential Suspension Bike

Attacking descents, weaving through trees and landing huge jumps, modern enduro riding demands a ride that can handle anything and that’s exactly what the Meta SX Essential mountain bike (MTB) offers you. Its triple butted alloy frame is backed up by Fox Performance suspension, a Shimano SLX 1×12 speed drivetrain and SLX 4-Piston hydraulic disc brakes.

DT Swiss Rims with Maxxis Assegai and DHR Tyres

Commencal has also fitted it with 27.5″/29″ DT Swiss E532 rims, which are wrapped in Maxxis Assegai and DHR II tyres. This stylish full suspension enduro race bike is ideal for off-piste all-mountain exploring, alpine freeride routes and the rigours of long-distance enduro race events.

Mullet Wheel Standard – 29″ Front Wheel and 27.5″ Rear Wheel

Commencal has been working on 29/27 ‘Mullet’ bikes and frames for many years now with their different downhill (DH) teams. This work has allowed Commencal to understand that to transform a regular bike with the same sized wheels into a bike with different sized wheels, it isn’t effective to just throw a 27-inch wheel on the back. The geometry and kinematics of the bike must be completely reworked, and it is thanks to this experience that we are now able to present the most successful version of the META V4 they’ve ever produced, the Meta SX.

Equipping this Meta SX with different sized 29/27-inch wheels is not the result of a trend that Commencal is following. Quite simply, this way the bike is much more balanced, specifically relating to grip on the front and back – the large 29-inch wheel on the front allows more confidence and rolling capacity whilst the 27.5-inch rear wheel offers more manoeuvrability and responsiveness.

The result is a bike that is more agile and easier on the steeps, more efficient under braking and more dynamic when pushing hard.

Once again, Commencal’s choice to work with Aluminium has allowed them to accompany this change in wheel size with an adjustment of the geometry. A shorter 10mm reach, a straightened steerer angle and extended (10mm) chainstays mean that the rider is naturally repositioned in the centre of the bike and will therefore be more precise and agile in their technique.

Lively, Progressive and Stable Enduro Optimised Suspension

Undoubtedly, one of the points that have changed the most is the way the suspension works. Apart from the kinematics, which have been reworked to provide more liveliness, Commencal made a point of managing the stiffness of the rear triangle. Through new double row Enduro Bearings, eliminating any deformation, the Meta SX frame offers perfect deformation/rigidity management to provide grip, comfort, and performance.

Easy Adjustable Flip Chip Suspension System

In addition to all this in-depth work, as on their Meta Power TR and Meta TR models, Commencal now offers a “Flip Chip” on the shock extension in order to be able to better adjust the geometry, and therefore fit with your style. This system also means you can adapt the height of the bottom bracket as well as the steerer and saddle angles within seconds. Depending on your preferences, you can have the choice between a dynamic bike that’s perfect for big pedalling trips, or a more progressive version that is ideal for days in the bike park or on more committed trails.

Stylish Welds and Convenient Cable Routing

The welds have been the subject of meticulous work to reduce them as much as possible without affecting the solidity of the frame. The cable routing is neat for easier maintenance, the cables being easily accessible in the down tube, while grommets are placed at the ends to give perfect support and prevent penetration of water and mud. Installing a bottle cage has also been made easy.

Features:

• Frame: Meta SX, 160mm rear travel, 29”-27.5”, Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
• Fork: Fox Suspension 38 Performance, 170mm Travel, 29″, Fit Grip damper, 3 positions, rebound, Boost (15x110mm), 44mm offset, 2 Tokens
• Rear Shock: Fox Suspension Float X Performance, 230×62.5mm, 2-position lever, rebound adjust
• Headset: ACROS ZS44/ZS56, Alloy cups, sealed bearings
• Stem: Ride Alpha Freeride 40, 40mm extension, 31.8 mm
• Handlebar: Ride Alpha R20 760 on Small; Ride Alpha R27 780mm on Medium and Large; Ride Alpha R27 800 on X-Large. 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S – 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L – 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
• Grips: ODI Elite Motion, Soft pro compound, single clamp, black
• Brakes:
• Shifters:
• Rear Derailleur: Shimano SLX 1×12-Speed
• Bottom Bracket: Shimano BB71-41A, Pressfit
• Crankset: Shimano SLX Boost, 170mm crank arms, Chainring: Shimano SLX, 32T, Dynamic Chain Engagement + Technology
• Chain: Shimano SLX, 12-Speed
• Cassette: Shimano SLX, 12-Speed, 10-51T
• Rims: DT Swiss E532 29″/27.5″
• Hubs: Front: Formula DC-711 32h, sealed bearings; Rear: Formula DCL-148A, 32h, sealed bearings
• Spokes/Nipples: SAPIM Leader, J-Bend 2.0 mm, stainless, with Nylok, black
• Tyres: Front: Maxxis Assegai 29″ x 2.5″, WT, 3C MaxxTerra, EXO, Tubeless Ready; Rear: Maxxis DHR II 27.5″ x 2.4″, WT, 3C MaxxTerra, EXO+, Tubeless Ready
• Seatpost: KS Rage-I 34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote
• Saddle: Fizik Terra Alpaca X5, 145mm width, S-alloy rails
• Accessories: Downtube protector, chainstay protector, seatstay protector

Easy Assembly

When you order a bike, one of our trained mechanics will carefully prepare and pack your bike for shipping. Upon delivery, the assembly is simple and all necessary tools and plastic pedals are conveniently included in the box.

Depending on the delivery service and destination, bikes will either be delivered in a large or a small box. Below is a guide as to how your bike will arrive:

• All bikes for delivery within the UK and Republic of Ireland will be delivered in a large box, except for balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
• All bikes for delivery within the EU on a standard service will be delivered in a large box. If an express delivery option is chosen, your bike will be packed into a small box. Again, the exception is balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
• All bikes for worldwide delivery outside the EU will be delivered in small boxes.

This video demonstrates assembly from a SMALL BOX.

This video demonstrates assembly from a LARGE BOX.

Please note that due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.
